Bottom Inlet Elbow

Bottom Inlet Elbow

EMAIL

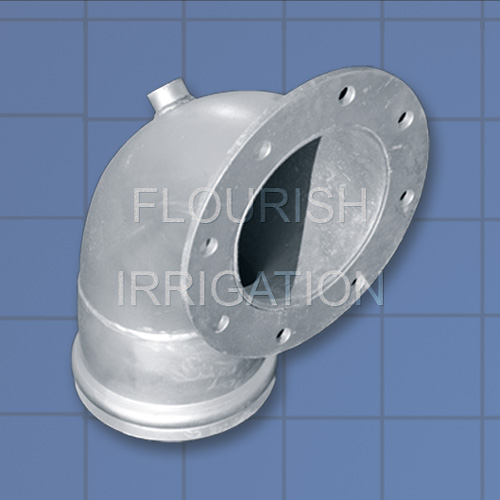

L Style Bottom Inlet Elbow

Standard inlet elbow 8”

inlet elbow with 4” table D flange

inlet elbow with 6” table D flange

8” table D flange 2m long


Product Description
Each of our sprinkler parts use hot dip galvanized steel, made in one of China’s leading galvanizing workshops. Our irrigation pipes have a thickness of 3mm, which is higher than the U.S.’s 2.0 - 2.5mm standard of pivot manufacturers according to ASTM A 123/123m-02.

Galvanizing Kettle
Inside Dimension: 14,000mm long×1,200mm wide×2,000mm deep
By W. Pilling of Riepe from Germany, the world’s leading kettle manufacturer.
50mm wall thickness, European Special Grade Plate (see analysis below)
Typical Analysis: C, .08%; Mn, .5%; P, .02%; S, .02%; Si, traces only
Zinc Volume of Kettle: 90 tons
Weight of Kettle: 25,150 kgs

We make each of our span pipes using automatic welding process to ensure consistent high quality and dimensions.
